Upper limb Zeus V2 Bionic Hand - Medium

Name: Upper limb Zeus V2 Bionic Hand - Medium
Brand: AETHER PROSTHETICS PRIVATE LIMITED
Price: 1550000.0 INR
Availability: InStock

Price 1550000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Upper limb Zeus V2 Bionic Hand - Medium Specification

Implants Type
Bionic Hand (Upper Limb Prosthesis)

Material
High-strength polymer, Aluminum alloy, Medical-grade silicone (for grip surfaces)

Sterilized
Yes

Sterilization Mode
Surface cleaning with medical wipes; not suitable for autoclave

Stent Location
Upper limb (below elbow to hand)

Physical Shape
Anthropomorphic hand with five fingers

Curved Angle
Ergonomic finger curvature; adaptive grip formation

Flexible
Yes (individually actuated fingers for dexterous movement)

Soluble
No

Recyclable
Partially (dependent on materials and manufacturer process)

Recommended For
Transradial amputees, partial hand amputees, prosthetic rehabilitation

Usage
Daily living assistance, grasping, writing, fine motor activities

Dimension (L*W*H)
Medium size: Approx. 210 mm x 95 mm x 60 mm (varies by individual fitting)

Diameter
Palm thickness approx. 35-45 mm (depends on fitting)

Head Diameter
N/A (not applicable to bionic hands)

Length
Hand length approx. 180-210 mm (medium size; wrist to fingertips)

Grade
Medical-Grade; Class I Prosthetic Device

Color
Matte black (custom skin tone covers available)

Weight
Approx. 540 grams (without socket attachment)

Attachment
Modular prosthesis socket interface

Sensors
Integrated force and position feedback sensors

Grip Strength
Up to 25 kg (adjustable, electronically regulated)

Software Interface
User-customizable via Bluetooth/mobile app

Wrist Rotation
Manual or powered rotation depending on module

Water Resistance
Splash-resistant (not submersible)

Compatibility
Compatible with common myoelectric and modular prosthetic systems

Grip Types
Precision pinch, tripod, power grip, lateral, key grip, and more

Latency
<100 ms control reaction time

Power Source
Rechargeable lithium-ion battery (removable/replaceable)

Finger Actuation
Individually powered, simultaneous multi-finger movement

Control System
Multi-channel myoelectric sensors with pattern recognition

Touch Sensitivity
Partial sensory feedback through haptic actuators

Operation Time
Up to 16 hours of typical daily use per charge

Customization
Available in multiple sizes, left/right orientation, aesthetic covers

Upper limb Zeus V2 Bionic Hand - Medium Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Week

About Upper limb Zeus V2 Bionic Hand - Medium

Designed for Touch Screen use

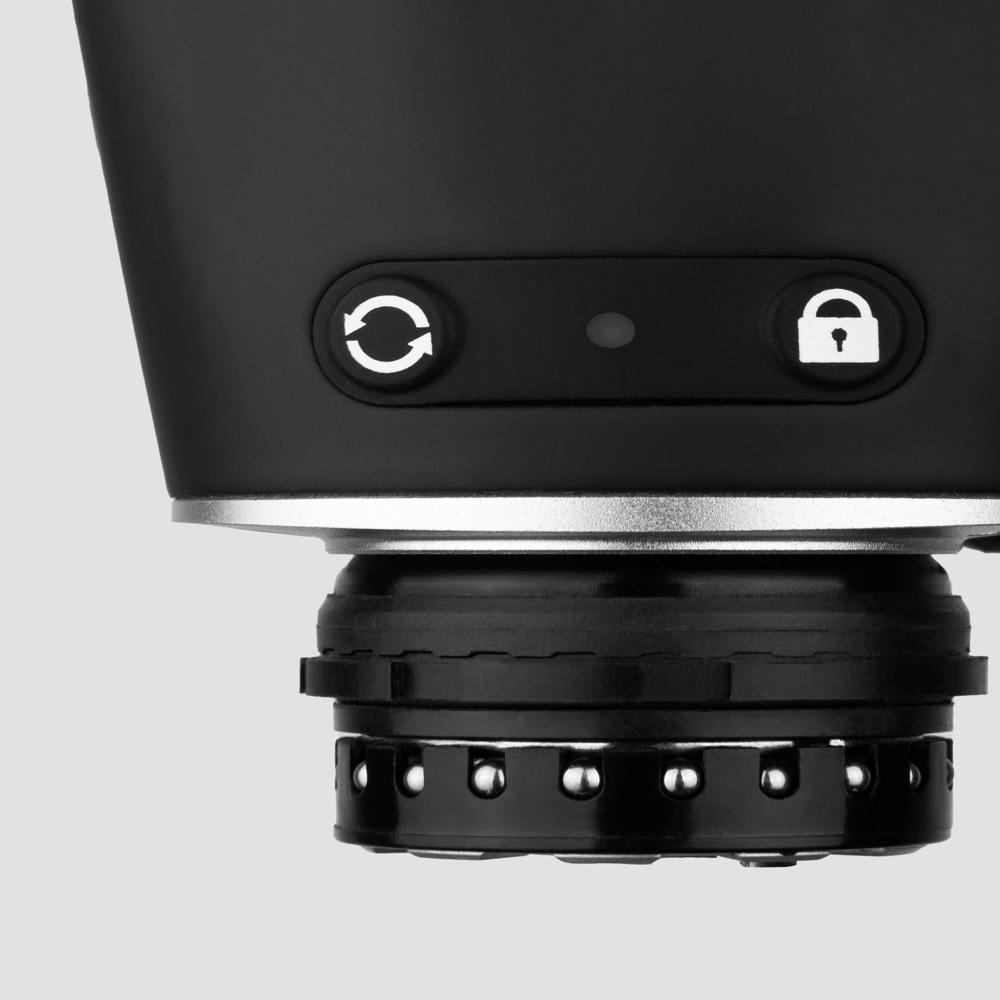

Quick Access buttons
Strongest Small Bionic Hand
over 120N of grip force
100% locally repairable in under 10 minutes by a trained person
Approx 1.5X Faster
Customisable - 14 Predefined grips (can be adjusted if needed) +10 custom-made grip patterns

Precise Myoelectric Control with Pattern Recognition

Utilizing multi-channel myoelectric sensors, the Zeus V2 Bionic Hand reads subtle muscle patterns and translates them into natural hand movements. Pattern recognition technology enables users to switch between various grip types seamlessly. With a reaction time below 100 ms, you experience responsive, intuitive control for both fine motor tasks and robust grips.

Advanced Ergonomics and Adaptive Grip Formation

The Zeus V2 Bionic Hand emulates the anatomical structure of a human hand with five individually actuated fingers and ergonomic curvature. This design allows for adaptive grip formation-precision pinch, tripod, lateral, power grip, and key grip. A medical-grade silicone surface enhances grip security and comfort, supporting daily activities and promoting functional independence.

Powerful, Rechargeable, and Built for Everyday Use

Powered by a removable, rechargeable lithium-ion battery, the Zeus V2 offers up to 16 hours of operation on a single charge, supporting reliable daily use. The weather-resistant build (splash-resistant, not submersible), robust materials, and easily cleaned surfaces make maintenance simple and the prosthesis durable, meeting the demands of active users.

FAQ's of Upper limb Zeus V2 Bionic Hand - Medium:

Q: How does the Zeus V2 Bionic Hand recognize and execute different grips?

A: The Zeus V2 utilizes advanced multi-channel myoelectric sensors with pattern recognition technology. By detecting unique muscle signal patterns from the user's forearm, the hand interprets and switches between grip types like precision pinch, tripod, and power grip in real-time.

Q: What is the typical battery life, and how is the bionic hand recharged?

A: The Zeus V2 operates for up to 16 hours on a single charge under normal daily use. Its lithium-ion battery is both removable and rechargeable, making it easy to swap batteries or recharge overnight for uninterrupted use.

Q: When is the Zeus V2 recommended and who benefits most from its use?

A: It is ideal for individuals with upper limb loss below the elbow, such as transradial and partial hand amputees. It is recommended for daily living assistance, fine motor skills, grasping, and prosthetic rehabilitation, thanks to its dexterity and adaptive grip options.

Q: Where can the Zeus V2 Bionic Hand be used safely?

A: The bionic hand is designed for daily and active lifestyles. Its splash-resistant construction allows safe use during typical indoor and outdoor activities, but it should not be submerged or exposed to heavy moisture, ensuring prolonged longevity.

Q: What customization options are available for the Zeus V2 Bionic Hand?

A: Users can choose from multiple sizes and left/right hand orientations. Custom skin tone covers are available for a personalized look. The hand also offers a modular socket interface to ensure a secure attachment, tailored to individual needs.

Q: How do users adjust settings or monitor functionality?

A: A Bluetooth-enabled mobile app allows users and clinicians to personalize grip strength, review activity data, and update system preferences. The software interface ensures easy, real-time adjustments to match user routines and preferences.

Q: What kind of sensory feedback does the Zeus V2 provide?

A: Partial sensory feedback is delivered through integrated haptic actuators, which generate subtle vibrations corresponding to grip force and object contact, giving users a tangible sense of interactions and improving control during grasping tasks.
